980 Laser

The 980nm or 1470nm Diode Laser Machine is a high-performance, medical-grade laser system designed for both clinical and aesthetic treatments. Known for its minimally invasive precision, this diode laser offers excellent tissue absorption, making it ideal for applications in vascular therapy, soft tissue surgery, lipolysis, proctology, gynecology, and ENT procedures.

Clinics and medical professionals choose this system for its efficiency, versatility, and safety, especially in treatments requiring coagulation, cutting, and vaporization with minimal thermal damage.

💡 980nm Diode Laser: High Efficiency, Cost-Effective Cutting

The 980nm wavelength offers strong advantages in terms of cost and beam quality. It provides excellent focus and concentrated energy output, making it highly effective for cutting and ablation of tissue. Based on the principle of selective photothermolysis, 980nm lasers are widely used in:

• Vascular treatments (e.g., spider veins, telangiectasia)
• Onychomycosis (fungal nail) removal
• Pain therapy and physiotherapy

The 980nm laser can stimulate ATP production, promoting anti-inflammatory, analgesic, and hemostatic effects. Additionally, it is also commonly used in veterinary surgery, intimate care, and dental procedures, proving its versatility across medical disciplines.

💧 1470nm Diode Laser: Deeper Penetration, Minimal Thermal Damage

The 1470nm wavelength is efficiently absorbed by both hemoglobin and water, allowing for deeper tissue penetration and highly selective thermal effects. Compared to other wavelengths, it requires less energy to achieve the same clinical effect while causing less collateral damage to surrounding tissue.

This makes it ideal for procedures requiring deep tissue interaction, such as:

• Neurosurgery
• Gynecological surgeries
• Endovenous Laser Therapy (EVLT) for varicose veins

In addition, the 1470nm laser offers excellent hemostasis, which helps reduce intraoperative bleeding, leading to a safer and faster surgical process.

🔄 Dual Wavelength Synergy: 980nm + 1470nm

By combining the strengths of both wavelengths, a dual-wavelength system (980nm + 1470nm) delivers coordinated energy output that achieves both efficient tissue cutting and optimal hemostasis. This synergy enhances surgical speed, safety, and clinical outcomes, making it the preferred choice for many advanced surgical applications.

---

Choosing the Right Wavelength for Surgical Needs

Both 980nm and 1470nm lasers have their unique advantages in surgical applications. The optimal choice depends on the specific clinical objectives, such as the depth of treatment, type of tissue, and desired therapeutic effect.

By choosing the appropriate wavelength—or combining both—clinicians can optimize surgical performance, minimize risks, and enhance patient recovery. The 980nm and 1470nm diode laser platforms offer powerful tools for modern, minimally invasive surgery.

980nm vs 1470nm Diode Laser Fat Melting Test 10W Lipolysis on Pork Tissue Comparison

980nm/1470nm Series Machines

🔍 Difference Between Physiotherapy and Surgical Diode Laser Devices

Laser devices can be broadly classified into two categories based on their intended use: Physiotherapy (Therapeutic) and Surgical.

---

⚙️ Design Differences: Fixed vs. Plug-in Type

• Physiotherapy Lasers:
  Typically feature a built-in (fixed) treatment handpiece, with non-consumable fiber heads that can be replaced for different applications. These devices are often used for pain relief, rehabilitation, or dermatological therapies and are designed for ease of use.

• Surgical Lasers:
  Must feature a plug-in fiber interface, usually using a standard SMA905 connector. These devices require consumable optical fibers (e.g., straight-tip, radial-tip, conical-tip fibers), and are intended for professional medical use in procedures like EVLT, hemorrhoidectomy, gynecology, or ENT surgery.
  These systems may also support non-consumable therapy fibers, provided they are SMA905-compatible.

---

🌈 Wavelength Compatibility

All diode laser systems—whether for physiotherapy or surgery—support:

• Single wavelength (e.g., 980nm or 1470nm)
• Dual wavelength (980nm + 1470nm)
• Mixed wavelength output (switchable or combined)

This ensures flexibility across treatment protocols, whether targeting hemoglobin-rich vascular tissues or water-rich adipose tissues.

🌀 Physiotherapy Laser Types & Wavelengths

● Vascular Lesions

• Treatment Head: Vascular Removal Head
• Available Wavelengths: 980nm / 1470nm

● Onychomycosis (Fungal Nail Infection)

• Treatment Head: Onychomycosis Treatment Head
• Available Wavelengths: 980nm / 1064nm

● Pain Therapy

• Treatment Head: Pain Relief Head

• Available Wavelengths:

• 980nm
• 980nm + 810nm
• 980nm + 810nm + 1064nm
• 980nm + 810nm + 1064nm + 915nm
• 650nm

● Acne Inflammation Reduction

• Treatment Head: Acne Treatment Head
• Available Wavelengths: 980nm / 1470nm

● Herpes Treatment

• Treatment Head: Herpes Therapy Head
• Available Wavelength: 980nm

● Dental Physiotherapy

• Treatment Heads:

• Teeth Whitening Head ×1
• Dental Treatment Head ×3

• Wavelengths Used: 980nm / 450nm / 1470nm

● Intimate Care

• Treatment Head: Vaginal Rejuvenation Head
• Available Wavelengths: 980nm / 1470nm

---

🩺 Surgical Laser Handpiece & Fiber Types

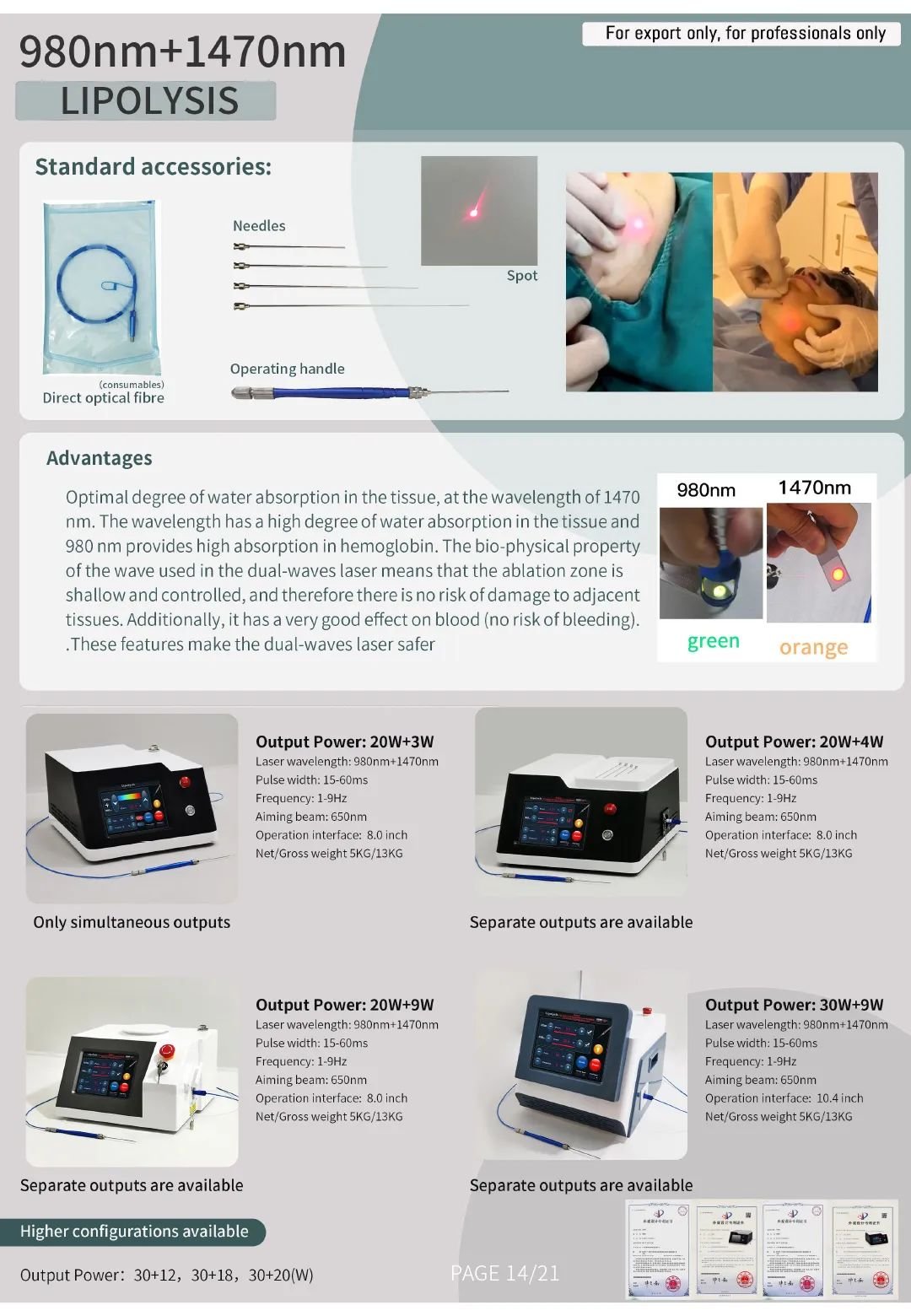

● Lipolysis

• Optical Fiber: Straight Tip Fiber

• Accessories:

• Blue Handpiece + 5 Needles
• Black Handpiece + 1 Needle

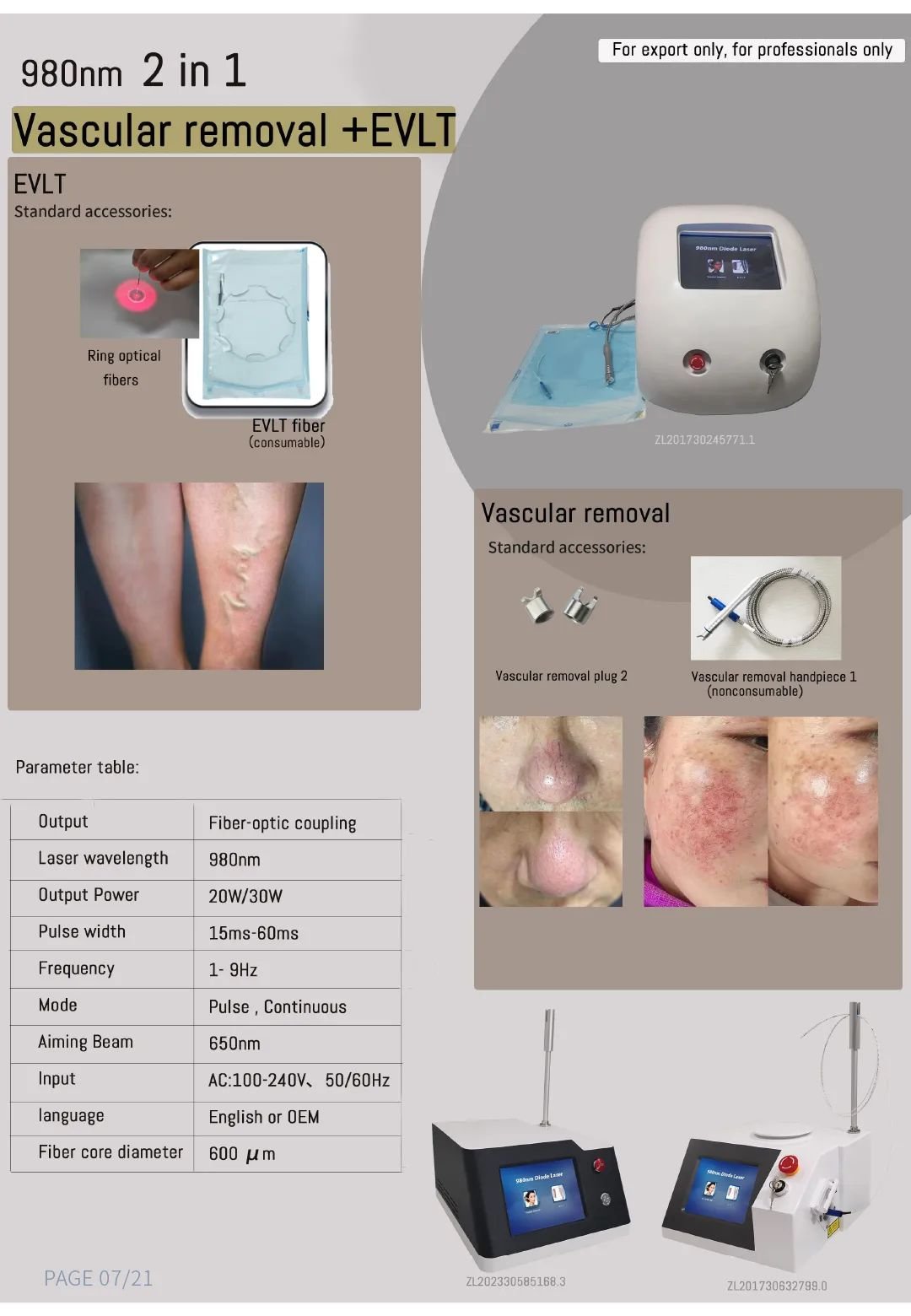

● Varicose Vein Surgery (EVLT)

• Optical Fiber: Radial Tip Fiber

● Abscess Surgery

• Optical Fibers:

• Conical Tip Fiber
• Straight + Radial Tips

● Incision Surgery

• Optical Fiber: White Straight Tip Fiber
• Accessories: Handpiece + 5 Needles

● Dental Surgery

• Optical Fiber: Dental Surgical Fiber (200μm / 400μm)
• Accessories: 20 Needles (disposable)

● ENT (Ear, Nose & Throat)

• Optical Fiber: Straight Tip Fiber
• Accessories: Blue Handpiece + 9 Needles

● Gynecological Surgery

• Optical Fiber: Radial Tip Fiber for Intimate Use
• Accessories: 5 Red Guide Rods (disposable)

---

⚙️ Laser Power Configuration Options

● Single Wavelength

• 980nm: 20W / 30W
• 1470nm: 15W / 20W

● Dual Wavelength (980nm + 1470nm)

• Simultaneous Output:

• 20W + 3W
• 20W + 4W
• 20W + 9W
• 30W + 9W

• Selectable or Split Output:

• 30W + 12W
• 30W + 15W
• 30W + 18W
• 30W + 20W
