Target Pigmentation. Renew Texture. Elevate Skin Rejuvenation.

Professional Fractional Skin Resurfacing Platform | 15W Output | 120 μm Microspot | Dual Treatment Modes

The Professional 1927nm Fractional Thulium Laser is an advanced skin rejuvenation platform designed for aesthetic clinics, medical spas, and dermatology practices seeking effective treatments for pigmentation, uneven skin tone, enlarged pores, rough texture, fine lines, and photoaged skin.

Powered by a real 15W Thulium fiber laser, the system delivers controlled 1927nm fractional energy to create microscopic treatment zones while preserving surrounding tissue.

The system combines two complementary treatment technologies — Precision Fractional Treatment and Dynamic Roller Treatment — providing a streamlined workflow for high-demand pigmentation and skin rejuvenation procedures.

Why 1927nm?

Precision Energy for Pigmentation & Skin Renewal

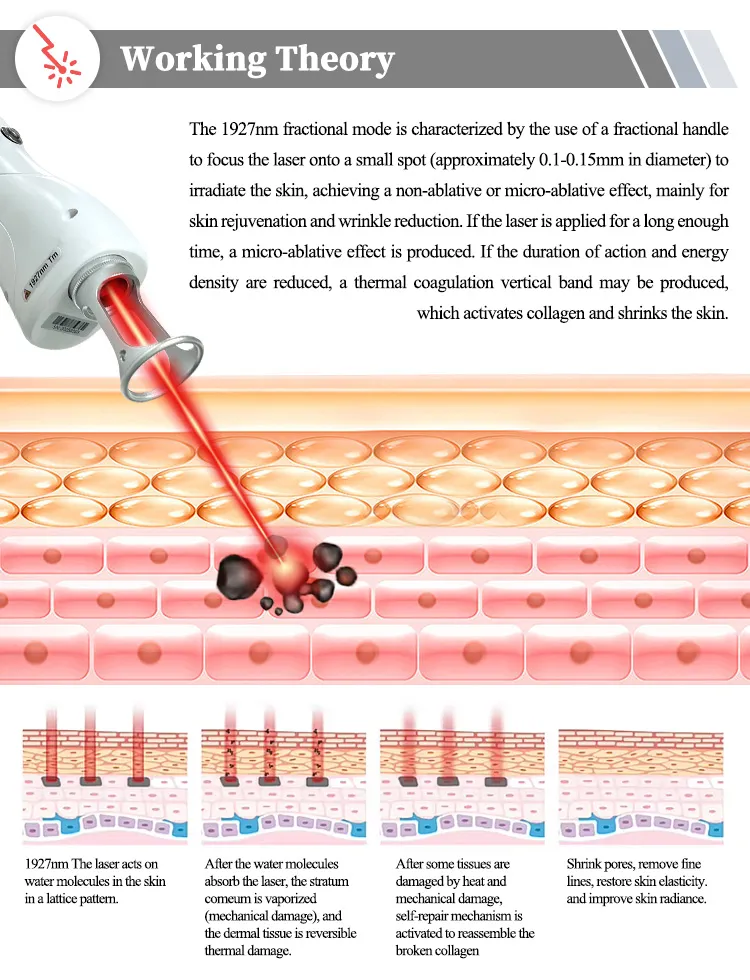

The 1927nm wavelength has a strong interaction with water in the skin, allowing controlled thermal energy to be delivered to the epidermal and superficial dermal treatment zones.

This makes 1927nm particularly suitable for treatments focused on:

• Melasma and superficial pigmentation
• Freckles and sunspots
• Age spots and photodamage
• Uneven or dull skin tone
• Enlarged pores
• Rough skin texture
• Fine lines
• Overall skin rejuvenation

Fractional delivery creates microscopic treatment zones surrounded by untreated tissue, supporting skin renewal while reducing the recovery burden associated with more aggressive resurfacing procedures.

Key Features

15W Laser Output

The system provides up to 15W output power, supporting efficient energy delivery across a wide range of adjustable treatment parameters.

120 μm Precision Microspot

A 120 μm spot size enables precise fractional energy delivery while leaving surrounding tissue untreated between microthermal zones.

Adjustable Pulse Energy

Pulse energy can be adjusted from 1–300 mJ, allowing practitioners to select different energy settings according to the treatment protocol and treatment area.

0.1–30 ms Adjustable Pulse Width

A broad pulse-width range provides additional control over energy delivery and thermal interaction with the target tissue.

Adjustable Fractional Density

The 0.1–2.0 mm adjustable dot pitch allows practitioners to control the spacing between treatment points and customize fractional coverage.

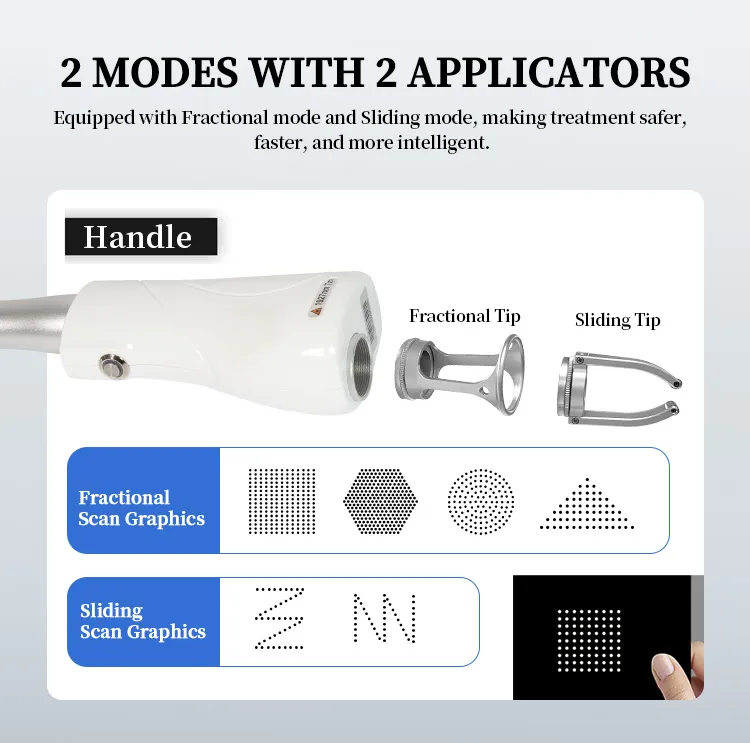

Dual Treatment Modes

The system includes two interchangeable treatment tips:

Fractional Tip — Provides controlled fractional scanning with multiple treatment patterns.

Sliding Tip — Designed for dynamic sliding treatment and efficient coverage of larger treatment areas.

Multiple Fractional Scan Patterns

Selectable scanning graphics include:

Square · Circle · Triangle · Hexagon · Custom

The fractional treatment area can be adjusted from 1 × 1 mm up to 20 × 20 mm.

Treatment Applications

The 1927nm Fractional Thulium Laser is designed for professional aesthetic skin treatments focusing on:

• Pigmentation and uneven skin tone
• Sun-induced pigmentation and visible spots
• Skin texture improvement
• Enlarged pores
• Fine lines and visible signs of photoaging
• Overall skin rejuvenation
• Superficial textural irregularities
• Smoother and more refined-looking skin

•



One Platform. Two Professional Treatment Technologies.

Instead of adding unnecessary applicators, the system combines two complementary treatment methods designed around everyday clinical applications.

Precision Fractional Head

Targeted Fractional Skin Renewal

The fractional treatment head delivers controlled microscopic laser spots across the selected treatment area.

Operators can adjust treatment parameters including energy, pulse width, spot spacing, scanning pattern, and treatment area, allowing treatments to be adapted according to the patient’s skin condition and treatment objective.

Recommended applications include:

• Pigmentation correction
• Melasma appearance improvement
• Sun damage
• Age spots and freckles
• Enlarged pores
• Uneven skin texture
• Fine lines
• Photoaging
• Skin rejuvenation

Dynamic Roller Head

Efficient Full-Area Skin Rejuvenation

The roller applicator provides a convenient approach for treating larger areas and performing dynamic skin rejuvenation treatments.

Its rolling treatment method allows the operator to move efficiently across the treatment area while delivering 1927nm laser energy.

Ideal for treatment programs focused on:

• Full-face rejuvenation
• Skin texture refinement
• Skin brightening
• Collagen-focused treatments
• Fine-line improvement
• General skin renewal

Together, the Fractional Head and Dynamic Roller Head provide a versatile 1927nm workflow for both targeted fractional treatments and efficient full-area skin rejuvenation.

Real 15W Laser Output

Stable Energy for Professional Treatments

The system delivers 15W real laser output, providing stable and consistent energy for professional fractional treatments.

Rather than focusing only on a high rated-power number, the system is engineered around controlled energy delivery, adjustable treatment parameters, and consistent performance at the treatment handpiece.

Laser Wavelength: 1927nm
Real Laser Output: 15W
Maximum Pulse Energy: Up to 300mJ
Fractional Spot Size: Approx. 120μm
Adjustable Spot Pitch: 0.1–2.0mm

This combination gives experienced operators flexibility to balance treatment intensity, coverage, and patient comfort.

High-Demand Treatments for Your Clinic

Pigmentation Correction

Designed for treatment programs targeting:

Melasma · Freckles · Sunspots · Age Spots · Uneven Pigmentation

The 1927nm wavelength makes pigmentation-focused treatment one of the platform’s primary clinical applications.

Skin Brightening

For patients concerned about:

Dull Skin · Uneven Tone · Photodamage · Loss of Radiance

Fractional skin renewal can be incorporated into professional brightening and complexion-improvement programs.

Pore & Texture Refinement

Target:

Enlarged Pores · Rough Texture · Uneven Skin Surface

Controlled fractional treatment supports epidermal renewal and collagen remodeling for smoother-looking skin.

Age-Defying Rejuvenation

Expand your treatment menu for:

Fine Lines · Photoaging · Skin Texture · Overall Rejuvenation

The photothermal effect of the 1927nm laser supports collagen remodeling and skin renewal.

Acne & Post-Acne Skin Care

Fractional treatment can also be incorporated into professional protocols designed to improve the appearance of:

Acne-Prone Skin · Uneven Texture · Post-Acne Marks · Enlarged Pores

Treatment parameters should always be selected according to individual skin condition and professional assessment.

Skin Renewal Without Aggressive Resurfacing

The 1927nm fractional approach creates controlled microscopic treatment zones rather than uniformly treating the entire skin surface.

This allows clinics to offer skin rejuvenation and pigmentation treatments with a more manageable recovery profile than aggressive ablative resurfacing procedures.

Depending on treatment intensity and individual skin response, patients may experience temporary:

• Redness
• Warmth
• Dryness
• Mild peeling

Treatment intensity and recovery time vary according to parameters, skin condition, treatment area, and individual response.

Flexible Fractional Scanning

The professional scanning system gives operators greater control over treatment coverage.

Adjustable Treatment Parameters

Pulse Energy
Adjust treatment energy according to treatment objective and skin response.

Pulse Width
Flexible pulse control for different treatment strategies.

Spot Pitch
Adjustable from 0.1mm to 2.0mm to control fractional density.

Scanning Modes
Order and Random scanning modes.

Multiple Scan Patterns
Square, Circle, Triangle, Hexagon and customizable treatment patterns.

Adjustable Graphic Size
From small targeted areas up to 20 × 20mm scanning fields.

This flexibility allows operators to customize treatments instead of relying on a single preset protocol.

Low Operating Cost

More Treatments. Fewer Ongoing Costs.

The Thulium fiber laser system is designed for long service life and low routine maintenance.

For clinics, this can mean:

• Lower treatment operating costs
• No shot-count anxiety during treatment
• Better utilization of the equipment
• Easier treatment package planning
• Improved long-term return on equipment investment

Built for Professional Clinics & Med Spas

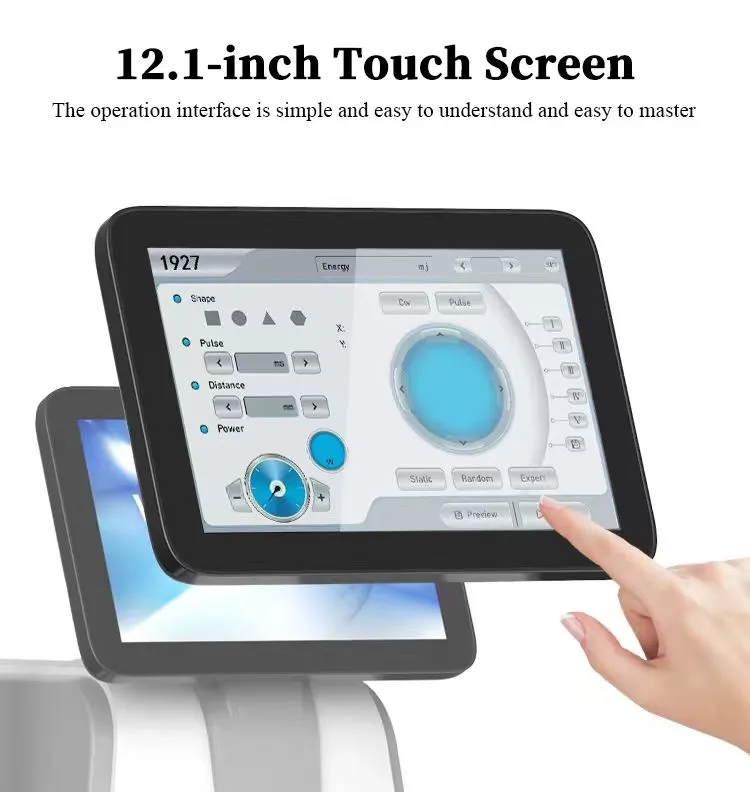

The system combines professional laser technology with an intuitive 12.1-inch touchscreen interface, making treatment settings easy to access and adjust.

Operators can control key parameters directly from the interface and select treatment patterns according to the treatment area.

The system is suitable for:

• Medical aesthetic clinics
• Dermatology practices
• Med spas
• Professional beauty clinics
• Skin rejuvenation centers
• Aesthetic treatment studios

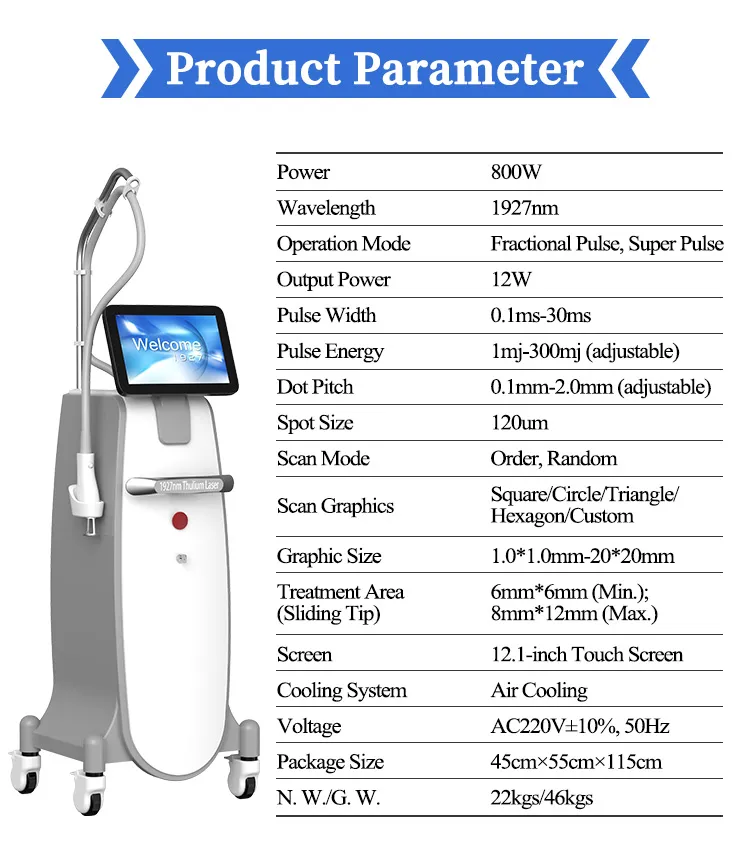

Technical Specifications

Specification	Details
Laser Type	Thulium Fiber Laser
Wavelength	1927nm
Real Laser Output Power	15W
Machine Power	800W
Operation Mode	Fractional Pulse / Super Pulse
Pulse Width	0.1–30ms
Pulse Energy	1–300mJ Adjustable
Spot Pitch	0.1–2.0mm Adjustable
Fractional Spot Size	Approx. 120μm
Scan Mode	Order / Random
Scan Graphics	Square / Circle / Triangle / Hexagon / Custom
Graphic Size	1 × 1mm – 20 × 20mm
Sliding Treatment Area	6 × 6mm Min. / 8 × 12mm Max.
Display	12.1-inch Touchscreen
Cooling System	Air Cooling
Net Weight	22kg
Gross Weight	46kg
Package Size	45 × 55 × 115cm
Voltage	AC 220V ±10%, 50Hz

What’s Included

The professional system is supplied with the essential components required for treatment and operation, including:

• 1927nm Thulium Laser main unit
• Precision Fractional Treatment Head
• Dynamic Roller Treatment Head
• Footswitch
• Protective eyewear
• Power cable
• Standard accessories
• User manual
• Treatment operation guidance

Professional Training Included

We Don’t Just Ship the Machine — We Help You Start Using It.

Every system includes professional remote training and technical support.

Training can cover:

• Machine installation
• Interface operation
• Treatment head selection
• Parameter adjustment
• Treatment workflow
• Patient preparation
• Treatment precautions
• Post-treatment care
• Cleaning and maintenance
• Basic troubleshooting

Our team also provides ongoing online technical support after delivery.

Free Shipping + Free Professional Training

Your purchase includes:

✓ Free Shipping
✓ Free Professional Training
✓ Treatment Guidance
✓ Operation Manual
✓ After-Sales Technical Support
✓ Manufacturer-Direct Support

A Focused 1927nm Platform for Profitable Skin Treatments

The Professional 1927nm Fractional Thulium Laser is designed for clinics that want to expand their pigmentation and skin rejuvenation services without investing in an overly complicated platform.

With real 15W output, precision fractional scanning, dynamic roller treatment, adjustable parameters, low operating costs, and professional training, it provides a focused solution for building high-demand skin treatment programs.

Pigmentation. Texture. Brightening. Rejuvenation.

Free Shipping + Free Professional Training

Request Clinic Pricing & Treatment Information

Contact us to receive:

• Latest clinic price
• Detailed treatment protocols
• Treatment videos
• Before & after cases
• Certification information
• Shipping and delivery information
• Distributor / OEM pricing
